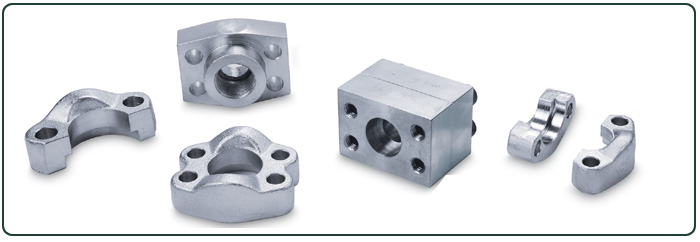

Hydraulics Flanges
J. J. Flanges are designed to confirm to O ring groove, bolt holes and bolt pattern dimensions of either code 61 or code 62 of SAE Flanges J518 and ISO 6162-1 or ISO 6162 – 2 except for those with square mounting hole pattern.
Technical Specifications
| Type | Socket Weld, Butt Weld, Split, Screwed, Blind, SAE Flanges, SAE Flanges with 24º EO Cone, CETOP |
|---|---|
| Series | 3000, 6000 |
| Size | 1/2” NB to 6” NB & also in metric tube. |
| Material | Steel, Stainless Steel |
| Surface Treatment |
Steel
|
Hydraulic Flange Types
Split Flanges
Split Flanges Low Profile
Deep Socket Weld
Butt Weld
90° Butt Weld
Threaded
90° Threaded
Square Socket Weld
Socket Weld Adaptor
Butt Weld Adaptor
Blanking
Connector Plate
JIC Flanges
JIC Adaptor
90° JIC Adaptor
