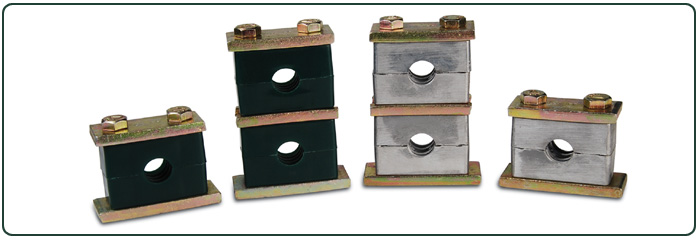

Pipe Clamps
J. J. Pipe Clamps are manufactured as per DIN 3015 – Part 1, 2 & 3 for ease of interchangeability. DIN 3015 Fittings are available in different series – Standard series (Light Duty), Heavy Series & Twin Series.
Technical Specifications
| Type | Standard (Light Duty), Heavy Duty & Twin Clamps |
|---|---|
| Series | Part 1 – Series A, Part 2 – Series C & Part 3 – Series B |
| Size | 6mm to 168mm, 1/4”OD to 8 1/2”OD, 1/8”NB to 6”NB |
| Pressure | 1500PSI for Light Duty and more than 1500PSI for Heavy Duty |
| Material |
Jaws – Polypropylene, Polyamide, Aluminum Top & Bottom Plate & bolt - Steel, Stainless Steel |
| Surface Treatment Top Bottom Plate |
Steel
|
