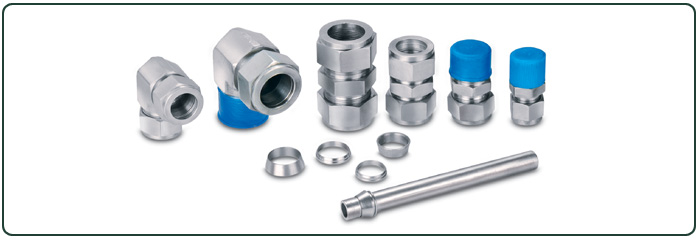

J. J. Twin Ferrule Fittings consists of Body, Nut, Front Ferrule and Back Ferrule. Twin Ferrule Fittings are available for different pressure rating ranging from 140Bar to 690Bar.

J. J. Twin Ferrule fittings are composed of four parts :-

The J. J. Hydraulics tube fitting is a mechanism used both to seal and to grip tubing. The mechanical advantage and geometry of this kind of fittings produces a leak-tight assembly. To assemble, simply insert the tube into the complete assembly until the tube bottoms-out against the shoulder of the fittings body (1). The two ferrules are driven forward between the nut (4) and fitting body using the mechanical force created by rotating the nut clockwise. The back ferrule (3) is driven against the tapered rear of the front ferrule (2) and the front ferrule is driven by force into the tapered mouth of the body. The rear ferrule is swaged radialy inwards on the tube while lifting the front ferrule out to form a full-faced seal on the tapered surface of the body. The 1 1/4 turn of the nut from the hand tight position assures consistent drive of the sealing members. This ensures an effective seal against high pressure as well as ultra high vacuum conditions.
